Compact Programmable UV Flood Curing System

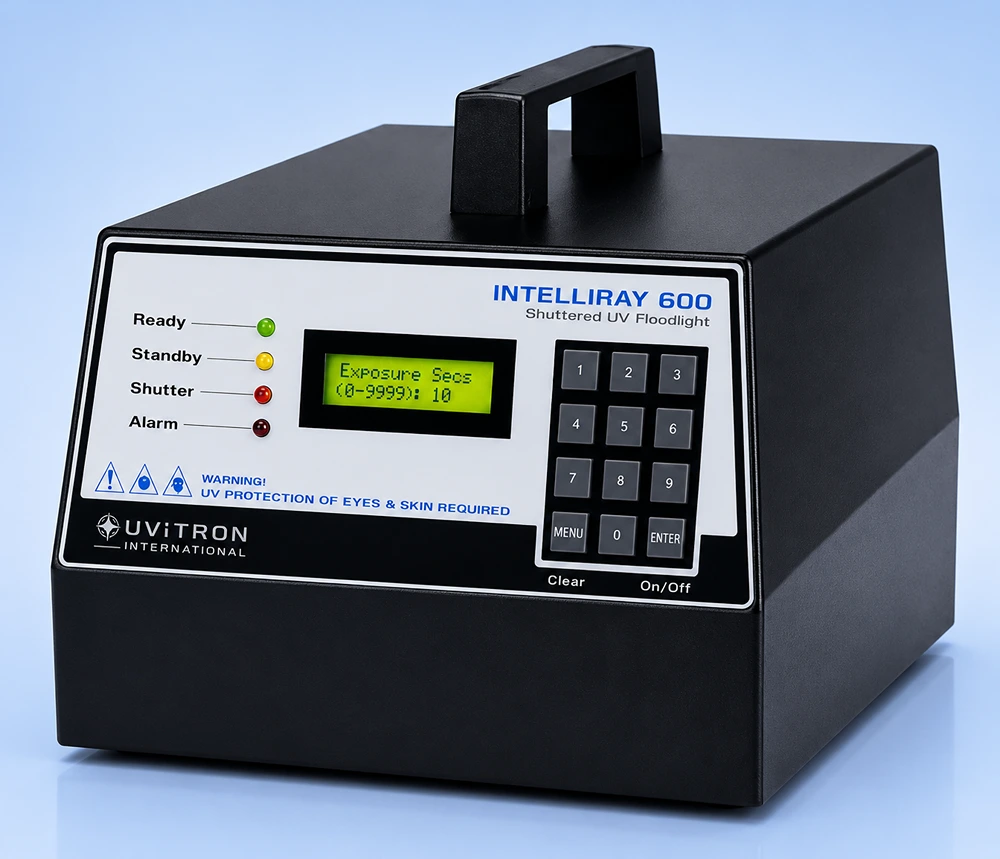

The IntelliRay is a compact and fully programmable UV flood curing system designed for efficient and flexible operation. Controlled by an advanced microprocessor, it integrates all essential components into a single lamp head for simplified installation and reduced wiring requirements. Its retractable shutter ensures accurate exposure timing while protecting users from UV radiation. An LCD display and digital keypad provide an intuitive interface for programming and monitoring curing operations. The system allows users to easily configure settings, manage exposure cycles, and achieve consistent, reliable, and high-quality curing performance.
Key Features
System Timers
The curing duration can be precisely controlled from 1 to 9,999 seconds or hours, enabling accurate exposure management. The system also offers a manual operating mode and supports extended exposure applications such as accelerated aging and solar panel testing.
Adjustable Lamp Intensity Control
User-adjustable intensity settings allow precise curing for a wide variety of materials, especially temperature-sensitive applications. Password protection helps secure intensity, timing, and system parameters.
Remote PC Connectivity
The system supports remote operation through RS232 and RS485 communication ports. A Windows-compatible graphical interface enables complete system control and allows multiple units to be networked together.
External Logic Signal Interface
Integrated logic signal interfaces simplify communication with external equipment, enabling seamless automation and easy integration into existing production environments.
Extended Lamp Life
The optimized lamp design delivers a long service life, reducing maintenance frequency and operating costs. Performance data is available for 200W, 400W, and 600W IntelliRay systems, ensuring reliable long-term operation.
Key Specification
Parameter | Value |
System Type | Parabolic Flood Curing System |
Part # | UV2018; UV0338; UV0832 |
Lamp Power | 200W; 400W; 600W |
Input Voltage | 100–120 / 200–240 AC ±10% (Auto-ranging) |
Input Current (Max @ 120/240V) | 3.5A / 2.0A; 7.0A / 3.5A; 10.0A / 5.0A |
Typical UV Irradiance at 3″ | 32 mW/cm²; 115 mW/cm²; 175 mW/cm² |
Curing Area | 8 x 6″ |
Weight | 13 lbs |
Size (L x W x H) | 11 x 10 x 9″ |
×
