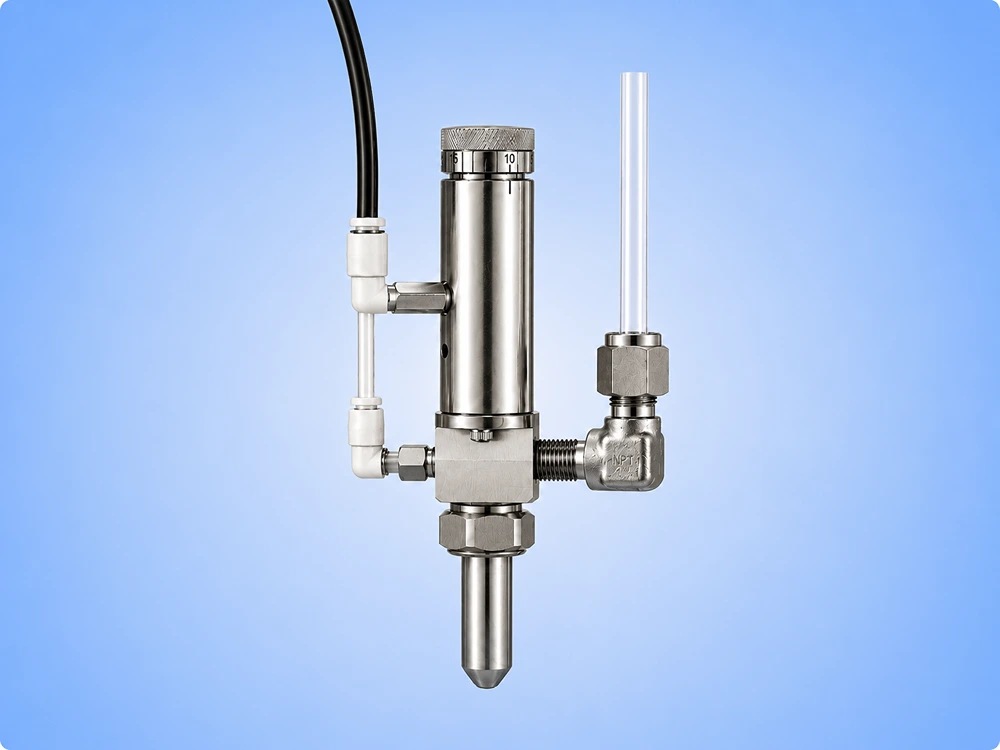

V01CS Spray Valve
The V01CS Spray Valve is designed for high-precision non-contact spray coating applications across a wide range of fluid viscosities. Engineered for consistent and controlled coating performance, it can accurately spray materials with viscosities up to 10,000 mPa·s, making it suitable for demanding industrial processes.
The valve delivers uniform coating patterns with minimal overspray and reduced scattering, ensuring clean and efficient application. Compatible with UV materials, silicones, epoxies, and other specialty fluids, it offers excellent repeatability and process reliability. The V01CS is ideal for automated coating applications requiring precision and consistent spray performance.
Key Features
- Suitable for low to high viscosity fluids
- Supports materials up to 10,000 mPa·s
- Precision non-contact spray coating
- Reduced overspray and scattering
- Compatible with UV materials, silicones, and epoxies
- Ideal for automated coating applications
Key Specification
Specification | Details |
Size | φ26.9 mm (fluid body) × 143 mm length |
Weight | 312 g |
Air cylinder body | SUS303 |
Piston needle | SUS303 |
Needle packing | SUS303, Teflon® |
Fluid chamber / extension | SUS303 |
Nozzle and air cap | SUS303 |
Fluid inlet thread | 1/8 NPT Female |
Mounting hole | M6 Female |
Valve operating air pressure | 0.4 ~ 0.62 MPa |
Maximum nozzle air pressure | 0.4 MPa |
Maximum fluid pressure | 0.7 MPa |
×
