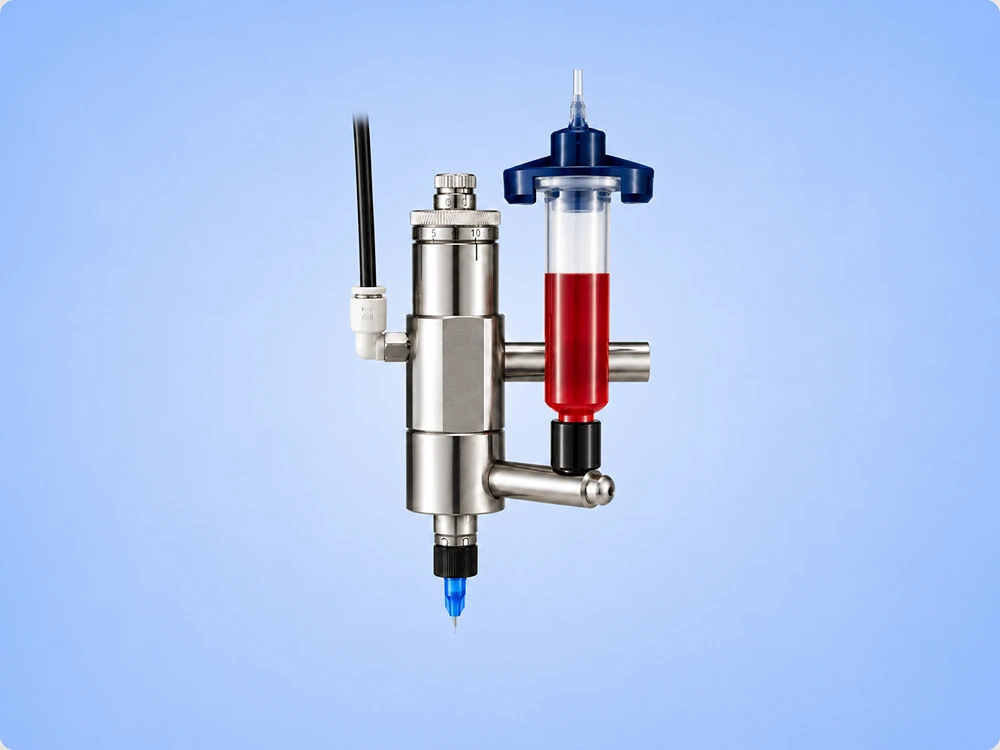

V59 – Micro Dot Valve
The V59 Micro Dot Valve is a pneumatically operated precision dispensing valve designed for accurate application of extremely small fluid deposits. Engineered for micro-volume dispensing, it delivers exceptional repeatability and consistent deposit control for precision manufacturing processes.
Featuring an adjustable needle stroke mechanism, the valve enables accurate control of shot size and dispensing performance. Its lightweight pencil-style design makes it suitable for both handheld and automated applications. Compatible with 22–33 gauge dispensing tips, the V59 is ideal for dispensing low-viscosity fluids in electronics, assembly, and other precision industrial applications.
Key Features
- Suitable for micro-volume dispensing
- Adjustable needle stroke control
- Consistent and repeatable deposits
- Compatible with 22–33 gauge tips
- Lightweight and compact design
- Ideal for precision dispensing applications
Key Specification
V59 – Micro Dot Valve – Specifications
Specification | Details |
Size | φ26.9mm (Fluid body) x 130mm length |
Weight | 320g (except fluid inlet fitting part) |
Air cylinder body | SUS303 |
Piston needle | SUS303 |
Needle packing | SUS303, Teflon |
Fluid body | SUS303 |
Fluid inlet fitting | SUS303 |
Tip adapter | SUS303, Teflon |
Fluid outlet port | 1/8 NPT female |
Mounting hole | M6 female |
Valve operating air pressure | 0.4~0.62MPa |
Maximum fluid pressure | 0.7MPa |
Free flow orifice | GP needle tips 22ga (IDφ0.41mm) ~33ga (IDφ0.11mm) |
×
