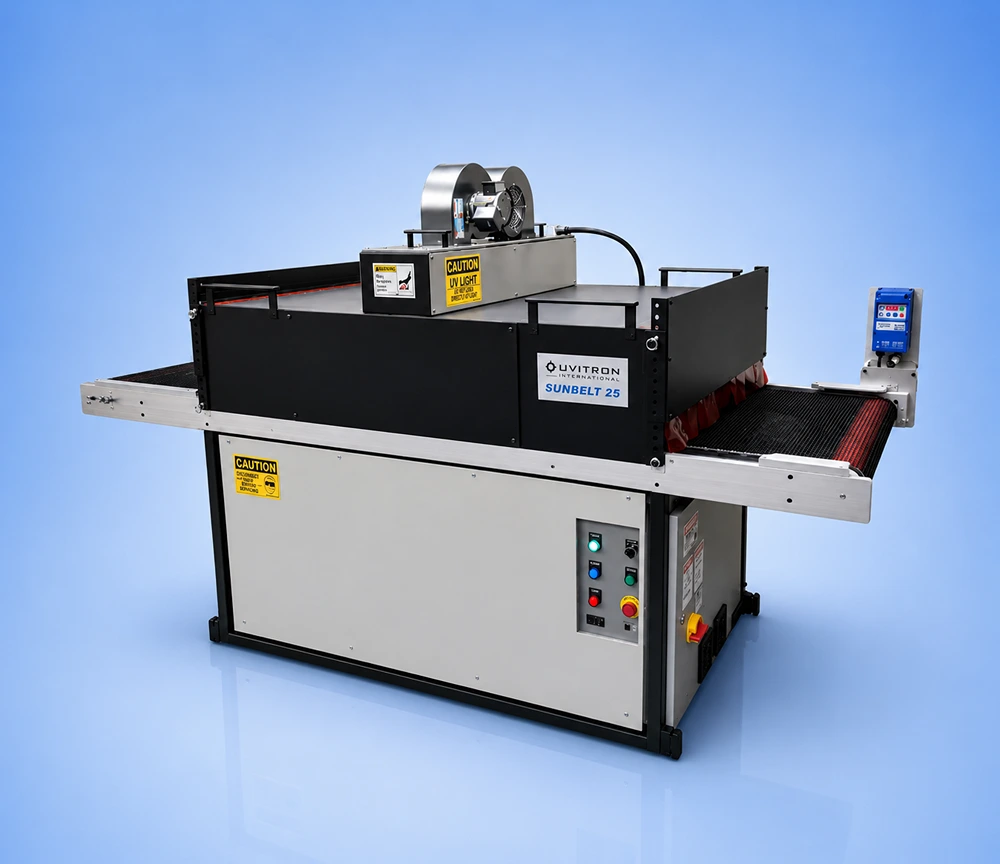

SunBelt 25
High-Power Wide-Width UV Curing Conveyor (98 words)
The SunBelt 25 is a high-performance UV curing conveyor designed for laboratory and high-volume production applications. Equipped with a powerful arc lamp and an electronically regulated ballast, it delivers consistent and intense UV output for fast and reliable curing. The variable-speed conveyor system ensures stable belt movement and quiet operation while accommodating different production requirements. Its enclosed curing tunnel, UV shielding, and adjustable lamp height provide enhanced operator safety and application flexibility. The system is ideal for curing components of various sizes while maintaining efficient and repeatable results.
Key Features
High-Output Lamp Head with Air Cooling
Features a 25-inch, 10,000W metal halide lamp with integrated cooling blowers that help maintain lamp performance and extend service life.
Stable Lamp Power Regulation
An electronic ballast maintains consistent lamp output despite voltage fluctuations, ensuring repeatable curing performance and longer lamp life.
Adjustable Lamp Height
Lamp height can be adjusted from 2 to 11 inches, allowing optimal curing distances for different product sizes.
Variable Belt Speed Control
A digital speed controller regulates conveyor speeds up to 58 ft/min, ensuring accurate exposure times and consistent curing results.
Exhaust Blower System
Integrated blowers remove heat and process vapors, with rear exhaust ports available for facility ventilation systems.
In-Feed Product Guides
Removable entrance guides help position products accurately within the curing zone, improving process efficiency and handling flexibility.
Key Specification
| Parameter | Value |
| System Type | Dual-lamp, variable-speed UV Curing Conveyor |
| Part # | UV3028-120M (120 VAC); UV3028-240M (240 VAC, required for dual SkyRay 800) |
| Input Voltage | 100-120 / 200-240 VAC ±10% |
| Input Current (Max @ 120/240V) | 20A at 120V; 15A at 240V |
| Curing Width | 6 in exposure width; 9 in max part width |
| Belt (L × W) | 54 × 9 in |
| Belt Speed | 0.5-25 ft/min |
| Lamp Height (Adjustable) | 1.2-6.7 in, 0.5 in steps |
| Size (L × W × H) | 54 × 14 × 16 in |
| Weight | 63.2 lbs |
×
