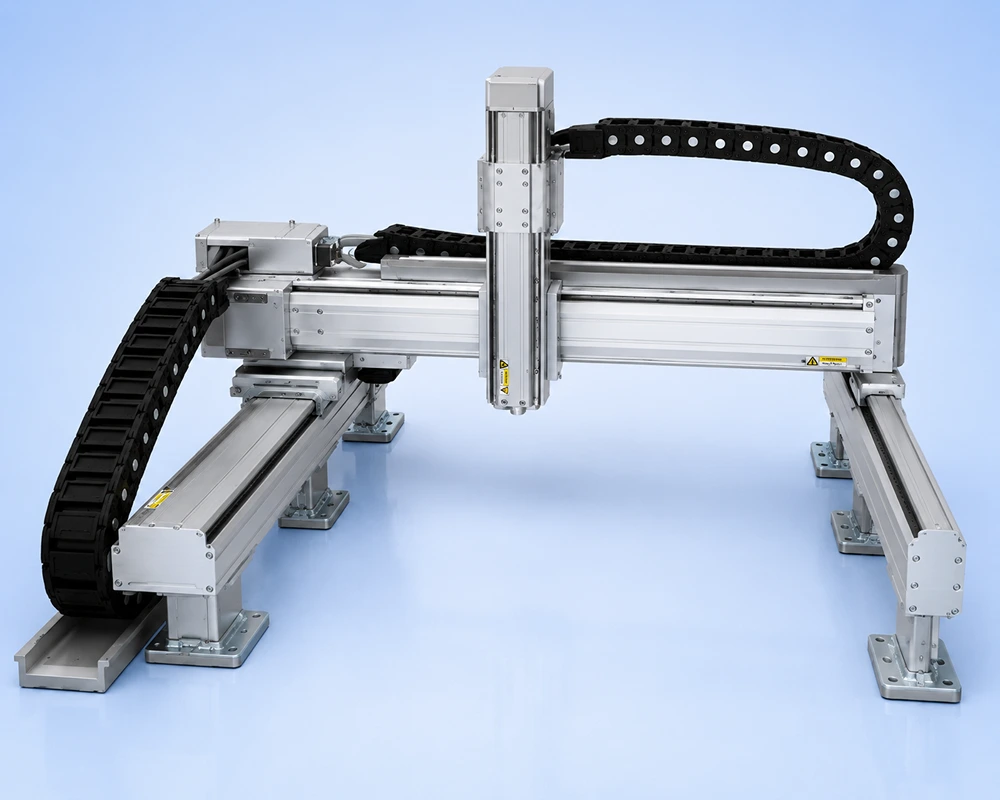

NDA9000 Series Gantry Robot
The NDA9000 Series Gantry Robot is a high-performance automation system designed for large-area dispensing and in-line production applications. Its gantry-style architecture positions all motion axes above the work area, providing maximum accessibility, precision, and flexibility for handling large workpieces.
Built with a robust aluminium structure and auxiliary shaft design, the robot delivers exceptional stability during long-stroke operations. Compatible with conveyorized systems and advanced dispensing equipment, it is ideal for continuous automated dispensing, coating, sealing, and spray applications in demanding industrial environments.
Key Features
- Gantry-style overhead architecture
- Large-area dispensing capability
- Optional fourth-axis integration
- Auxiliary shaft for enhanced stability
- Heavy-duty aluminium construction
- High-precision motion control
- Conveyor system compatibility
- Continuous industrial operation
Key Specification
| Item | NDA9300 | NDA9400 | NDA9500 | NDA9600 | NDA9680 |
| Working area:X/Y/Z | 300/300/100 | 400/400/100 | 500/500/100 | 600/600/100 | 600/800/100 |
| Max Load Z axis | 8.0KG | ||||
| Speed X&Y/Z(MM/SEC) | 0.1-500/320 | ||||
| Repetitive Position Accuracy | ±0.01mm/axis | ||||
| Program Capacity | at least 100 groups , 4000 points / group | ||||
| Date Storage Type | CF Card | ||||
| Byte | 32 Bit | ||||
| Progam Display | LCD | ||||
| Control Method | PTP & CP | ||||
| Interpolation function | 3 Axis | ||||
| Programming Method | Teach Pendent | ||||
| I/O Signals Port | 8 Input/ 8 Output | ||||
| External Control Interface | RS232 | ||||
| Motor System | Servo motor | ||||
| Drive Mode | Precision ball screw | ||||
| Power Supply | AC 90~260v 320W | ||||
| Working Temperature | 0~40°C | ||||
| Working Relative Humidity | 20~90% no condensation | ||||
×
