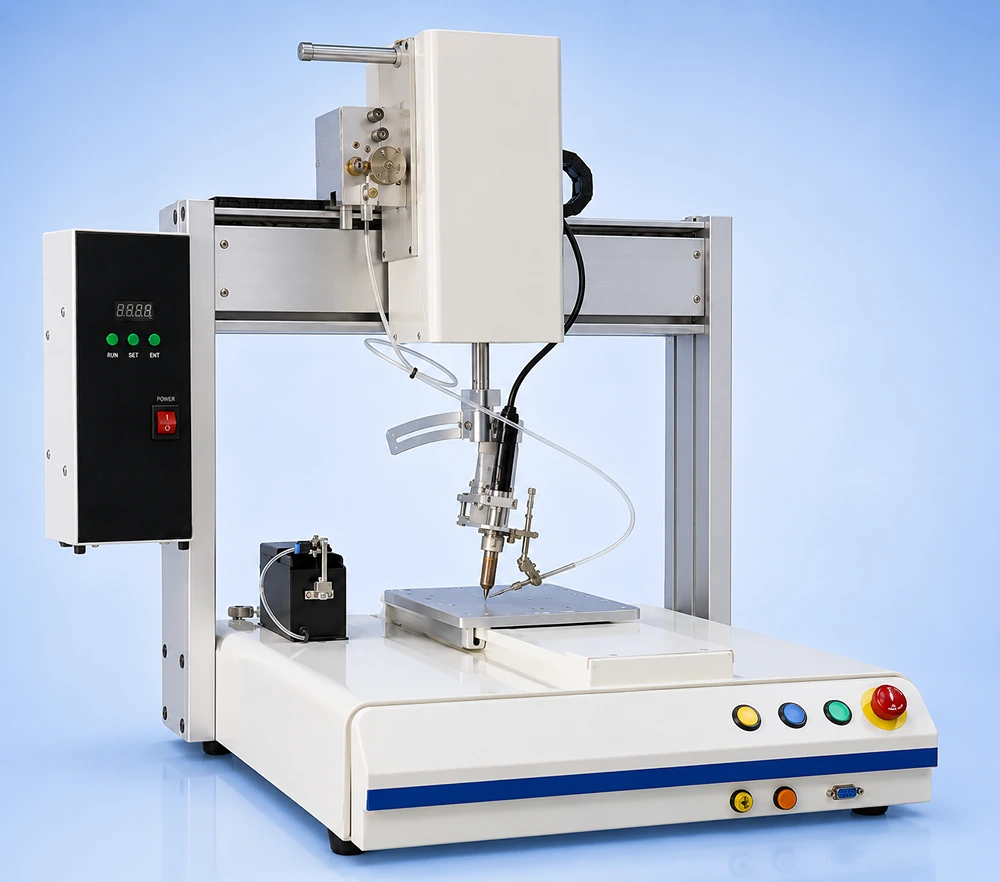

NDA7000 Series 4-Axis Benchtop Robot
The NDA7000 Series 4-Axis Benchtop Robot is a precision dispensing system designed for accurate fluid placement, high-speed motion control, and complex automated dispensing applications. Its advanced software and intuitive teach pendant enable quick creation of dispensing patterns including dots, lines, circles, arcs, and fills.
Equipped with a 360° rotational R-axis and true 3D interpolation, the robot delivers precise dispensing on vertical, angled, and hard-to-reach surfaces. Its modular architecture supports seamless integration with sensors, I/O modules, and automation accessories, providing flexibility for advanced manufacturing environments.
Key Features
- High-precision 4-axis motion control
- 360° rotational R-axis
- True 3D interpolation
- Teach pendant programming
- Supports complex dispensing patterns
- High repeatability and accuracy
- USB data transfer capability
- Modular automation integration
Key Specification
NDA7000 Series 4-Axis Benchtop Robot
| Item | NDA7300SR | NDA7400SR | NDA7500SR |
| X/Y/Z Working Area (mm) | 300/300/100/360° | 400/400/100/360° | 500/500/100/360° |
| Max Load Y/Z Axis | 5.0kg / 8.0kg | ||
| Speed X&Y/Z (mm/sec) | 0.1~600 mm/sec | ||
| Repeatability Accuracy | ±0.02 mm/axis | ||
| Heating Power | 150-300W | ||
| Data Memory | Min 100 programs, 4000 points/program | ||
| Heating Temperature Range | 0°C~550°C | ||
| Operation System | PTP & CP | ||
| Interpolation | 4 Axis | ||
| Program Method | Teach Pendant | ||
| Power Supply | 110-220V | ||
| Working Relative Humidity | 20-90% RH | ||
| Operating Temperature | 0~40°C | ||
| Motor System | Stepping Motor + Linear Slide Rail | ||
| Dimensions (mm) | 485×505×760 | 585×610×760 | 685×700×820 |
| Weight | 36kg | 43kg | 54kg |
×
