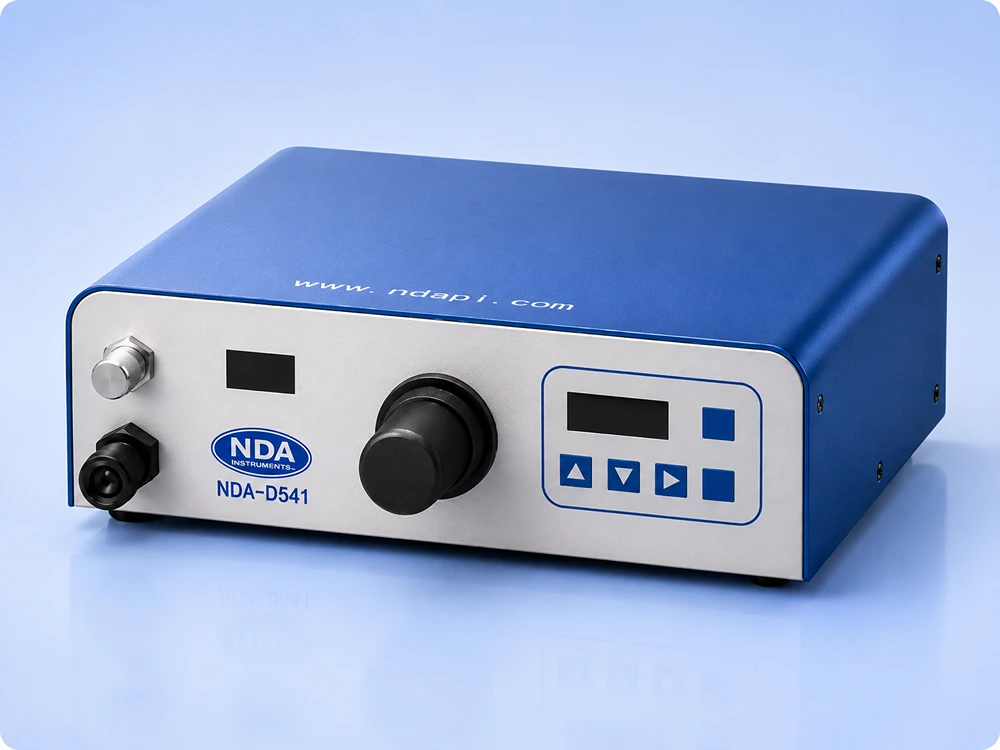

NDA-D541 Digital Dispenser
The NDA-D541 3-Way Digital Dispenser is a high-precision dispensing controller designed for accurate, stable, and repeatable fluid dispensing across industrial applications. Its advanced digital timer control and precise pneumatic regulation ensure consistent material output and improved process reliability.
The adjustable vacuum suck-back function minimizes dripping and stringing, enabling clean and controlled dispensing. Suitable for both manual and automated operations, it supports low to medium viscosity fluids and enhances overall production efficiency.
Key Features
- Digital timer control
- Vacuum suck-back adjustment
- Repeatable dispensing accuracy
- Stable pneumatic regulation
- Manual & automated operation
- Compact design
Key Specification
| Parameter | Specification |
| Display | Digital |
| Timer | 0.001 – 99.99 |
| Air Input & Output | 1 – 120 psi |
| Vacuum Function | Yes |
| Cycle Initiate | Foot Pedal, Finger Switch, Signal for 5DC-24V(I/O) |
| Input / Output | 9 Pin DB Connector 2 Input & 2 Output |
| Operating Temperature | 5°C ~ 40°C |
| Control | Microprocessor Based |
| Power | 240 VAC, 50/60 Hz |
| Power Supply | 18W |
| Dimensions | L215 X W225 X H90 mm |
| Weight | 1.9 Kg |
| Accessories | Foot Pedal, Power Adaptor, Syringe Barrel with Piston, Barrel Adaptor & Dispensing Tips |
×
