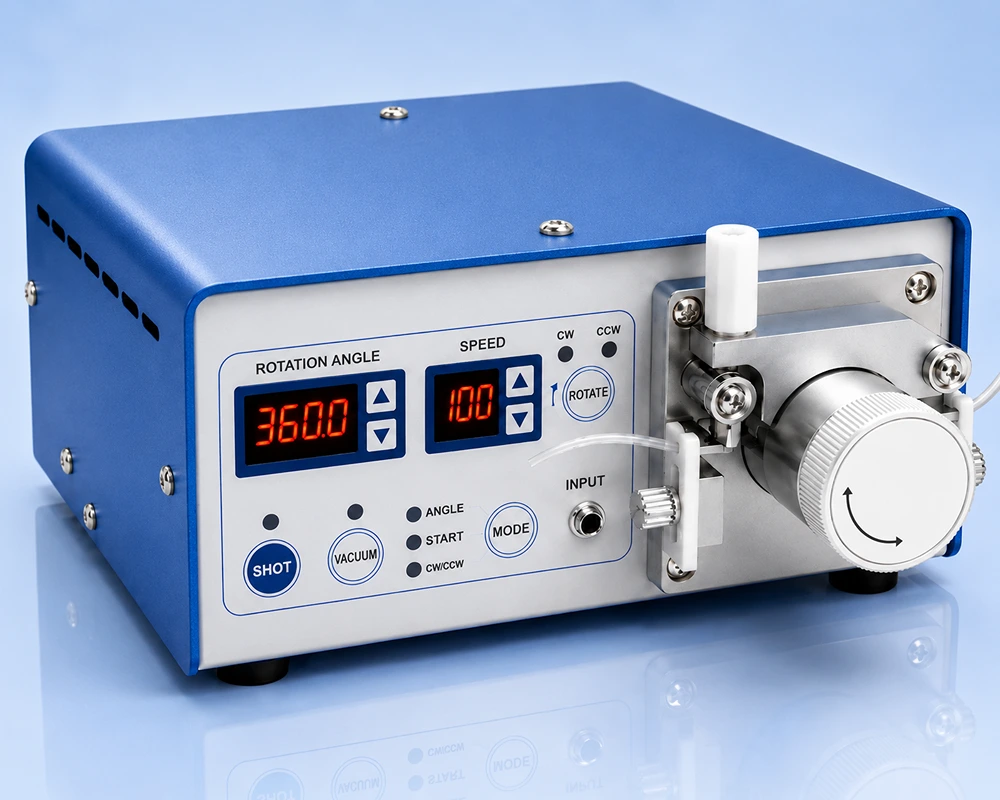

NDA-160 Servo Tubing Dispenser
The NDA-160 Servo Tubing Dispenser is a high-precision positive displacement dispensing system designed for accurate, air-free dispensing of low-viscosity fluids. Its servo-driven tubing technology ensures stable, pulsation-free material delivery, making it ideal for sensitive and reactive materials such as cyanoacrylates, solvents, acids, and industrial chemicals.
The bidirectional pump mechanism provides precise forward and reverse control with an instant snuff-back function to prevent dripping and stringing. Supporting both continuous and timer dispensing modes, the NDA-160 delivers reliable performance for precision fluid handling and automated dispensing applications.
Key Features
- Air-free positive displacement dispensing
- Servo-driven dispensing control
- Forward & reverse pump operation
- Instant snuff-back function
- Continuous & timer dispensing modes
- Stable, pulsation-free delivery
- Digital LED display
- Compact and durable design
Key Specification
| Parameter | Specification |
| Speed | 0 ~ 200 rpm |
| Minimum dispense volume | 0.0001 ml |
| Applicable material viscosity | 0 – 10000 cps |
| Power supply | AC220V ± 10PHz |
| Power consumption | 30VA |
| Dimension | W31 * D28 * H14 cm |
| Weight | Approximately 2.4 kg |
×
