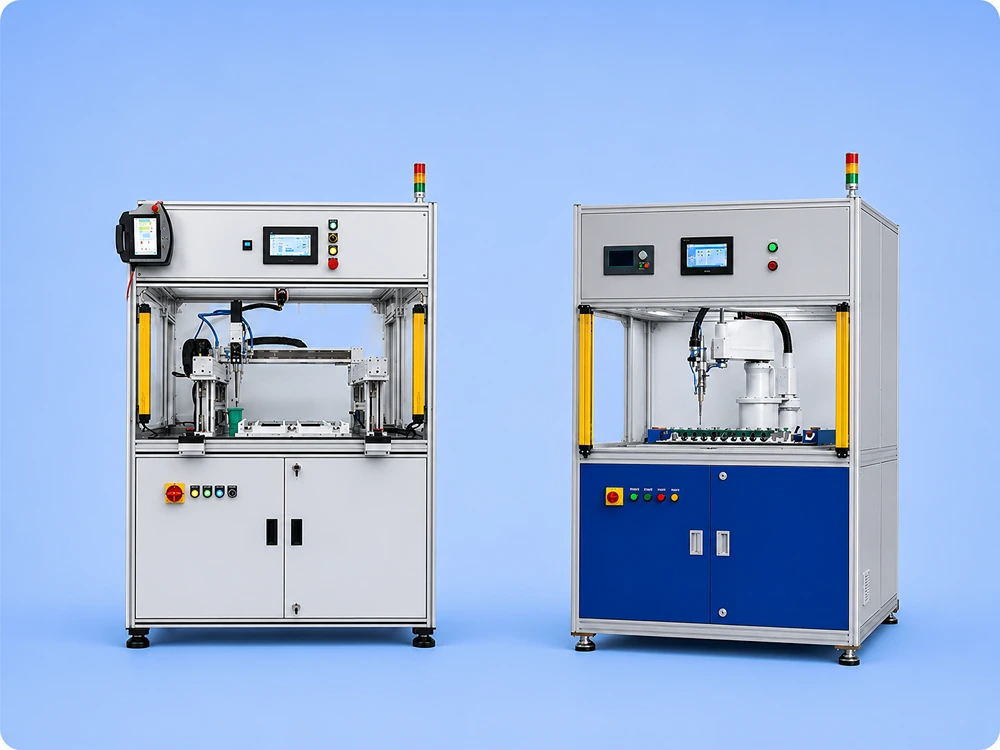

2K Robotic Potting Machines
The 2K Potting Machine – Robotics Series is a fully automated dispensing system designed for precise metering, mixing, and dispensing of two-component materials such as epoxy, polyurethane, and silicone. Integrated with a high-precision robotic dispensing platform, the system delivers accurate and repeatable material application for high-volume manufacturing processes.
Equipped with Gantry / SCARA Robots along with advanced PLC-based control system and an intuitive HMI touchscreen, the machine enables easy programming of dispensing parameters, including flow rate, shot size, dispensing path, and mixing ratio. The servo-driven robotic system ensures smooth motion, exceptional positioning accuracy, and consistent dispensing quality across complex workpieces.
The machine incorporates precision metering technology to maintain stable material flow and accurate mixing, minimizing material waste while improving production efficiency. Its enclosed safety design, flexible automation capabilities, and compatibility with conveyors, vision systems, and other production equipment make it an ideal solution for modern automated manufacturing lines.
Designed for reliability and continuous operation, the 2K Potting Machine – Robotics Series is suitable for applications requiring high accuracy, repeatability, and long-term production stability.
Typical Applications
- Electronic Potting
- PCB Encapsulation
- Automotive Electronics
- Sensor & Connector Potting
- LED Driver & Lighting Modules
- Battery Pack Components
- Component Bonding & Sealing
- Industrial Electronic Assemblies
Key Features
Fully automated robotic dispensing for high production efficiency
Accurate metering and mixing of two-component materials
Compatible with epoxy, polyurethane, silicone, and similar materials
Servo-driven robotic motion for precise dispensing paths
Continuous, pulsation-free material flow
PLC control with user-friendly HMI touchscreen
Programmable dispensing patterns, shot sizes, and flow rates
Stable mixing ratio for consistent dispensing quality
High repeatability with minimal material wastage
Supports integration with conveyors, vision systems, and automation lines
Enclosed safety cabinet for secure operation
Low maintenance with reliable industrial-grade components
Modular design with options for heating, agitation, low-level sensing, vacuum degassing, nitrogen purge, and recipe management
Key Specification
| Specification | Details |
| Mix Ratios | 1:1 to 20:1 |
| Compatible Material | Epoxy, Polyurethane, Silicone and Other Resins |
| Tank MOC & Capacity | SS304 with Options in 10,30,50 & 100 Liter |
| Agitator | Available, For Part A & B |
| Material Input to Pumps | By Gravity |
| Lower-Level Sensor | Available |
| High-Level Sensor | Available |
| Tank Heating | Available |
| Hose Heating | Available |
| Material Feeding | Automatic |
| Vacuum Pump | Available |
| Motor Control System | Servo Based |
| Motor Speed | 1 ~ 120 RPM |
| Pumping Type | Progressive Cavity Pump / Gear Pump |
| Robot Types | Gantry / SCARA |
| System Control | PLC based |
| Program Interface | HMI |
| Anti-Gel Function | Available |
| External I/O | Available |
| Ethernet Communication | Available |
| Pressure Monitoring | Yes |
| Number of programs | 99 |
| Flow rate | Variable |
| Min Shot size | 0.5 ml |
| Dispensing Accuracy | ± 2% |
| Power | 220 VAC Single Phase |
| Dimensions | L W H – 1500x1500x2000 mm |
×
